FRW1-4ZZ-인치 시리즈 플랜지, 확장 내부 링 베어링

Hot tags:MTWB Bearing FRW1-4ZZ-Inch Series Flanged,Extended Inner Ring Bearing a specialized manufacturer of tailor-made ball or roller bearings, Our engineers offer technical support all along, making MTWB an ideal OEM bearing partner for international OEM.
Inch Series Flanged,Extended Inner Ring Bearing
Request Quote >
  • Inch Series Flanged,Extended Inner Ring Bearing
  • Inch Series Flanged,Extended Inner Ring Bearing

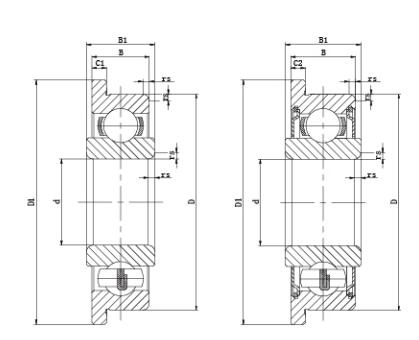

Dimension and Parameters

BEARING NO.
Open :FRW1-4ZZ
Bore Diameter
d(mm) :1.984
Outer Diameter
D(mm) :6.35
Width
Outer ring B(mm) :3.571
Inner ring B1(mm) :4.366
Chamfer
rs(min)(mm) :0.1
Flange outer diameter
D1(mm) :7.518
Flange width
C1(mm) :0.787
Basic Load
Cr(N) :310
Cor(N) :108
Max Speed
Open Type(X1000rpm) :67
